1064 nm 30 mW DFB Butterfly-Laserdiode

Table of Contents

1. Introduction of the 1064nm 30mW DFB Butterfly Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

This is a 1064nm DFB Laser Diode with a 14-pin standard butterfly package, central wavelength 1064nm, wavelength tolerance +/-1nm, and typical output power 30mW. Built-in TEC, thermistor, isolator, and monitor PD, with excellent wavelength stability for long-term stable operation. It is mainly used in optical fiber communications and sensing. Wire strictly according to the pin definition, under TEC control, and excessive fiber bending to ensure performance and service life.

Product Specifications

Product Features

● Multi-Quantum Well (MQW) distributed feedback(DFB) lasers;

● Output power up to 30mW;

● SM or PM fiber;

● 14-pin BTF package with thermistor, TEC, isolator and Monitor PD.

Product Applications

● Optical fiber communications;

● Optical instrument;

● Optical fiber sensor;

● Light source.

Product Details

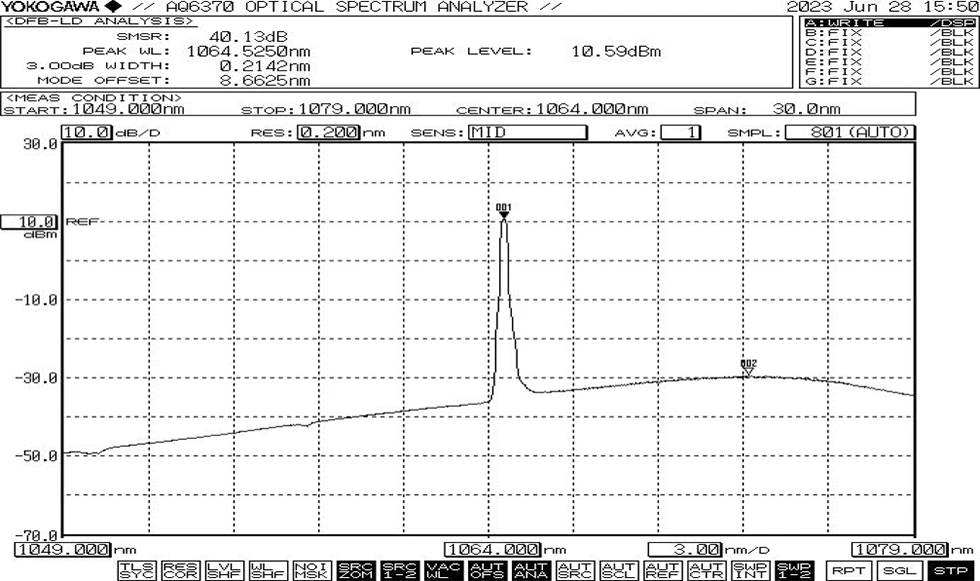

● Typical spectrum: 1064nm, +/-1 WL tolerance

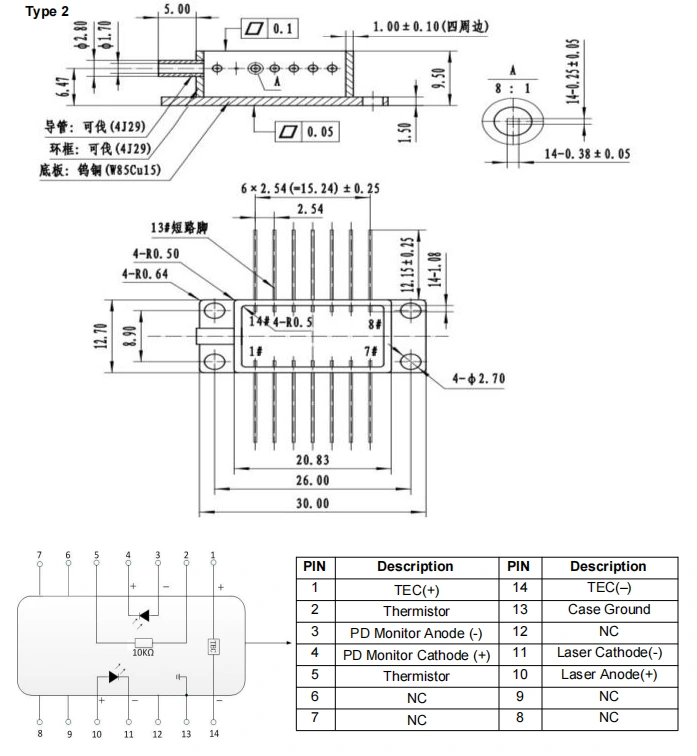

● Package drawing&PIN-OUT Definition(Unit:mm)-1064nm 30mW DFB Butterfly Laser Diode

● Standard accessories

*Standalone device; no built-in driver (external driver optional).

Ordering information

eg: BFLD-1064-30SM-FA

(Order information: 1064nm 30mW DFB Butterfly Laser Diode, with SM fiber, FC/APC connector, pump pin).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● Before powering up all components, first activate the cooler, and then proceed with incremental power-up steps to prevent chip overheating and overload.

● When operating, this device emits a high-intensity laser beam; do not look directly into the fiber end face, as doing so may cause eye injury.

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

● During the power-up process, never apply a high current directly, as this risks damaging the chip. Instead, power up the device at a current level close to the chip's threshold, and then gradually increase the current in small increments until the desired level is reached.
